Pipe Fittings 180 Degree Elbow XS 5" DN125 Stainless Steel Pipe Bend

Product Categories
TOBO STEEL GROUP CHINA
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Pipe Fittings 180 Degree Elbow XS 5" DN125 Stainless Steel Pipe Bend

  • 1
  • 2

Brand Name : TOBO/TPCO/TISCO/VALIN/METAL

Model Number : 1.4835 Stainless Steel Seamless Pipe

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 0.5-1 tons

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 7500 tons per year

Delivery Time : 15days->

Packaging Details : in plastic bags then in bundles

Standard : DIN, ANSI, ISO, GB, JIS

Sample : Provided,Free,Available free within 7days

Application : Fluid pipe,Structure Pipe

Outer Diameter : 6-813mm

Surface : Annealed & Pickled, Bright Annealing, Polished

Thickness : 0.5-100mm

Material : Carbon Steel,Stainless Steel,alloy steel,Brass,copper

Types : Seamless

Contact Now

Pipe fittings 180 deg elbow XS 5" DN125 stainless steel pipe bend

Overview
Quick Details
Place of Origin:
China
Model Number:
180ELB
Technics:
cold press
Connection:
Welding
Shape:
Equal
Head Code:
round
Size:
1/2" up to 110"
Wall thickness:
SCH 5s-SCH XXS
Standard:
ASTM B16.9
Name:
Pipe fittings 180 deg elbow XS 5" DN125 stainless steel pipe bend
Surface treatment:
sand blasting, roll blasting, pickled or polished
Degree:
180 degree
Radius:
1d 1.5d 3d 5d 10d 20d so on
End:
bevel end ANSI B16.25
Production process:
seamless or welded
Material:
304,304l,316,316, 321,347h,310s, s31803,saf2205, etc.
Supply Ability
Supply Ability
3000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
below 8", will be packed by plywood case
above 8", will be packed by plywood pallet
Port
TIANJIN,SHANGHAI

Pipe fittings 180 deg elbow XS 5" DN125 stainless steel pipe bend
Name
Pipe elbow
Size
1/2"-24" seamless, 26"-60" welded
Standard
ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness
SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.

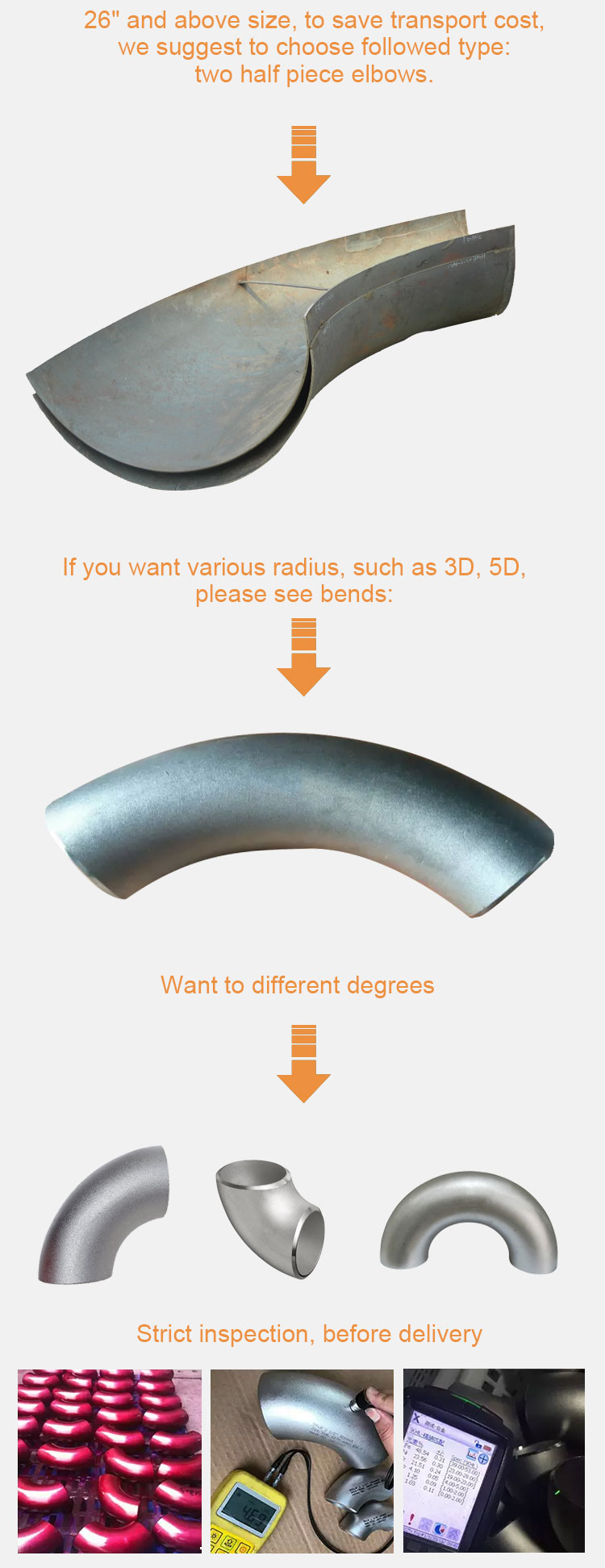

Elbow
30° 45° 60° 90° 180°,etc
Radius
LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D,20D etc.
End
Bevel end/BE/buttweld
Surface
Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished, shinning
Material
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,
A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571, 1.4541, 254Mo and etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,
UNS32760, 1.4462,1.4410,1.4501 and etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276,Monel400, Alloy20 etc.
Pipe Fittings 180 Degree Elbow XS 5" DN125 Stainless Steel Pipe Bend
Pipe Fittings 180 Degree Elbow XS 5" DN125 Stainless Steel Pipe Bend
Pipe Fittings 180 Degree Elbow XS 5" DN125 Stainless Steel Pipe Bend

FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
