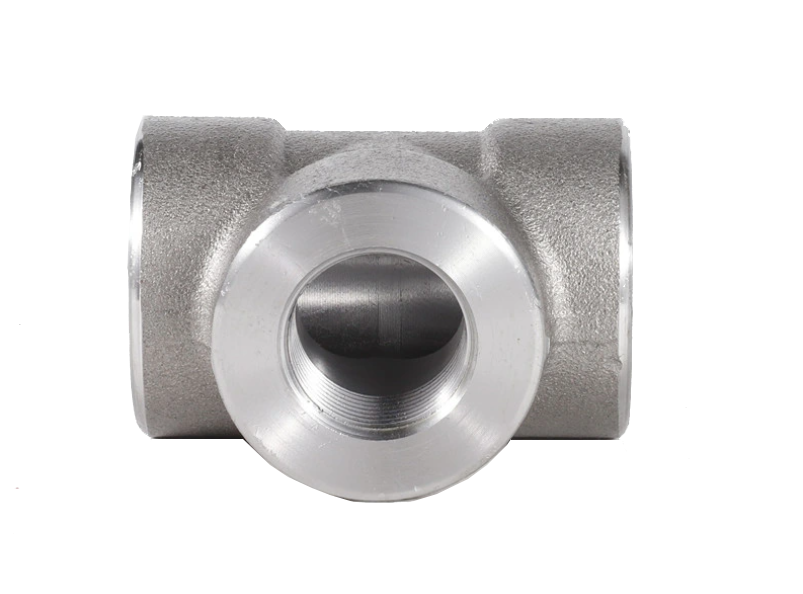

3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings

  • 1
  • 2

Brand Name : TOBO/TPCO/TISCO/VALIN/METAL

Model Number : 1.4835 Stainless Steel Seamless Pipe

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 0.5-1 tons

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 7500 tons per year

Delivery Time : 15days->

Packaging Details : in plastic bags then in bundles

Standard : DIN, ANSI, ISO, GB, JIS

Application : Fluid pipe,Structure Pipe

Surface : Annealed & Pickled, Bright Annealing, Polished

Types : Seamless

Thickness : 0.5-100mm

Outer Diameter : 6-813mm

Material : Carbon Steel,Stainless Steel,alloy steel,Brass,copper

Sample : Provided,Free,Available free within 7days

Contact Now

3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings

Overview
Quick Details
Warranty:
3 years
Customized support:
ODM, OEM
Place of Origin:
China
Model Number:
FP01
Technics:
Forged
Connection:
Female/Male/Welding
Shape:
Equal or Reducing
Head Code:
Round
Surface treatment:
Galvanized is available
Feature:
High Durability
Function:
Piping Connection
Sample:
Sample Freely
Sample Delivery:
5-7 days
Pressure:
3000 lb , 6000 lb , 9000 lb
Supply Ability
Supply Ability
400000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
two boxes in one carton
35 cartons per one pallet
842 cartons with the pallet in one container
Carton size: 485mm x 320mm x 180mm
Port
Tianjin
Picture Example:
Lead Time:
Quantity(pieces) 1 - 10 11 - 100000 >100000
Est. Time(days) 7 35 To be negotiated

Products Description
3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings
3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings
3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings
3000lbs ASTM A105 High Pressure Socket Weld Forged Tee Carbon Steel Forged Pipe Fittings
Name
Forged Pipe Fittings
Dimension Specification
GB/T 7306,12716,14383,14626
ASME B16.11-2001(Revison of ASME 16.11-1996)
MSS-SP-79,83,95,97
Material specification
Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2
Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/317L/F321/F310/347/904
Size of raw material: DIS19~100MM round bar.
Pressure
Threaded end--2000/3000/6000LBS
Socket weld end--3000/6000/9000LBS
Butt welding--SCH40/SCH80/SCH160/XXS
Connection way
Socket-weld
Threaded(NPT/BSPT)
Butt-welding

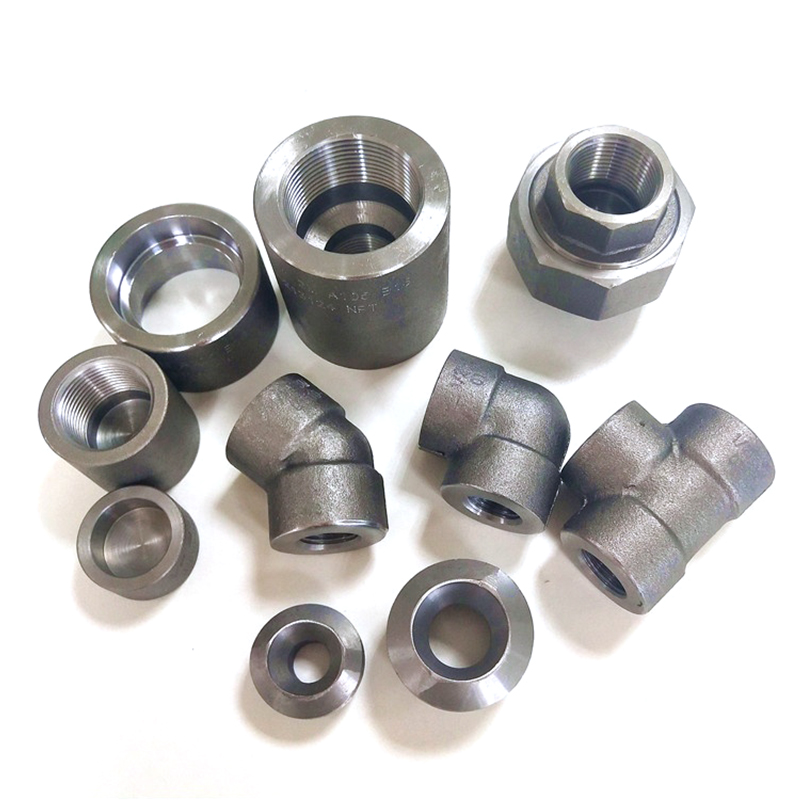

Type
Elbow, tee, cross, coupling, half coupling, cap, plug, bushing, union, out-let, swage nipple, bull plug, reducer insert and hex, nipple, street elbow, boss, ect.
Marking
Carbon and alloy steel: marked by stamping.
Stainless steel: marked by electro-etched, jet printed or stamping.
1/2"-4"
Finishing
Carbon steel--Galvanized or black phos, phosphating.
Stainless steel--Pickled.
Application
Suitable for fire piping system,air,oil,gas,water supply.
Service
Buyer's drawing or designs are available.
Package
1. Cartons
2. Wooden case
3. Plywood case
4. As the buyer's requirements.
Delivery Details
According to the quantities and specifications of each order;
Normal delivery times is from 25 to 35 days after receiving the deposit.

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
