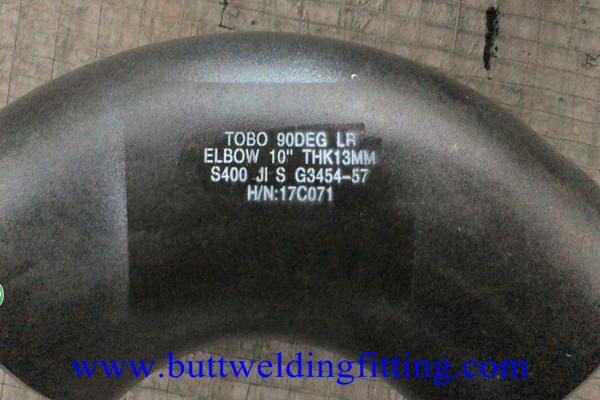

JIS G3454/57 S400/TPY(Mariloy): Elbow 90 DEG LR OD10 Inch, WT 13MM
Product Description
1.Material Grade: S400/TPY(Mariloy)
2. Size: 10''
3. Standard: JIS G3454/57
4. Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
| Product Name | Elbow |
| Material | S400/TPY(Mariloy) |
| Place of Origin | Shanghai, China (Mainland) |
| Standard | DIN,EN,ASTM,BS,JIS,GB,etc. |
| Grade | S400 |
| Brade | TOBO |
| Model Number: | S400/TPY(Mariloy) |
| Packaging | In wooden cases, pallets or as your requirements |
| Unit : inch
Nominal
Pipe
Size | Outside Dia.
(OD) | Wall Thickness (T) | 90o L/R Elbow Center To End A | 45o L/R Elbow Center To End B | 90o S/R Elbow Center To End A |
| | | Sch.5S | Sch.10S | Sch.40S | Sch.80S | | | |
| 1/2 | 0.840 | 0.065 | 0.083 | 0.109 | 0.147 | 1.50 | 0.625 | |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.113 | 0.154 | 1.12 | 0.438 | |
| 1 | 1.315 | 0.065 | 0.109 | 0.133 | 0.179 | 1.50 | 0.875 | 1.00 |
| 1-1/4 | 1.660 | 0.065 | 0.109 | 0.140 | 0.191 | 1.88 | 1.00 | 1.25 |
| 1-1/2 | 1.900 | 0.065 | 0.109 | 0.145 | 0.200 | 2.25 | 1.12 | 1.50 |
| 2 | 2.375 | 0.065 | 0.109 | 0.154 | 0.218 | 3.00 | 1.38 | 2.00 |
| 2-1/2 | 2.875 | 0.083 | 0.120 | 0.203 | 0.276 | 3.75 | 1.75 | 2.50 |
| 3 | 3.500 | 0.083 | 0.120 | 0.216 | 0.300 | 4.50 | 2.00 | 3.00 |
| 4 | 4.500 | 0.083 | 0.120 | 0.237 | 0.337 | 6.00 | 2.50 | 4.00 |
| 5 | 5.563 | 0.109 | 0.134 | 0.258 | 0.375 | 7.50 | 3.12 | 5.00 |
| 6 | 6.625 | 0.109 | 0.134 | 0.280 | 0.432 | 9.00 | 3.75 | 6.00 |
| 8 | 8.625 | 0.109 | 0.148 | 0.322 | 0.500 | 12.00 | 5.00 | 8.00 |
| 10 | 10.750 | 0.134 | 0.165 | 0.375 | 0.500 | 15.00 | 6.25 | 10.00 |
| 12 | 12.750 | 0.156 | 0.180 | 0.375 | 0.500 | 18.00 | 7.50 | 12.00 |
| 14 | 14.000 | 0.156 | 0.250 | 0.375 | 0.500 | 21.00 | 8.75 | 14.00 |
| 16 | 16.000 | 0.165 | 0.250 | 0.375 | 0.500 | 24.00 | 10.00 | 16.00 |
| 18 | 18.000 | 0.165 | 0.250 | 0.375 | 0.500 | 27.00 | 11.25 | 18.00 |
| 20 | 20.000 | 0.188 | 0.250 | 0.375 | 0.500 | 30.00 | 12.50 | 20.00 |
| 24 | 24.000 | 0.218 | 0.250 | 0.375 | 0.500 | 36.00 | 13.50 | 24.00 |
Conclusions of Investigation
1. Cr-containing oil coat may give Mariloy good corrosion
resistance to cargo oil environment.
Inspection after 15-years service showed that Mariloy
pipe could be used without painting over 30 years in cargo
oil pipe environment.
2. There is no pit in the inside of water ballast pipe, though
all surfaces rusted. That means that general corrosion
occurred. As the maximum loss in wall thickness is 3.2mm
maximum after 15 years, Mariloy can be used without
painting over 30 years also in water ballast pipe
environment.
Conclusions
1. Good Corrosion Resistance
Inspection after 15-years service showed that Mariloy
S-400 pipe could be used without painting over 30 years in
cargo oil pipe and in water ballast pipe environments.
2. Merit of Using Mariloy S- - 400 Pipe
Using Mariloy S-400 gives you an economical and ecological solution;
vs. carbon steel pipe with painting: reduction in the fabrication and maintenance cost and time,
and solution to regulation of harmful paints.
Our Service
Why Choosing Metal Industrial:
-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Danieli Metallurgical Equipment
-Experienced Professinonals on Communications
Our Company
We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.
We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.
In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on.
Packing & Delivery
Packing Details :In wooden case, pallets or as per customers’ requirement
Delivery Details : 7-15 days after the PO
